HONM-902 Polymer polyvinyl chloride (PVC) waterproof membrane

Interview share

Product Detail

Products Description

PVC waterproofing membrane is a high performance polymer waterproofing membrane, PVC resin as the main raw material, adding
plasticizer, anti-aging agent, stabilizer and other processing aids to produce a new high-quality waterproof roll material

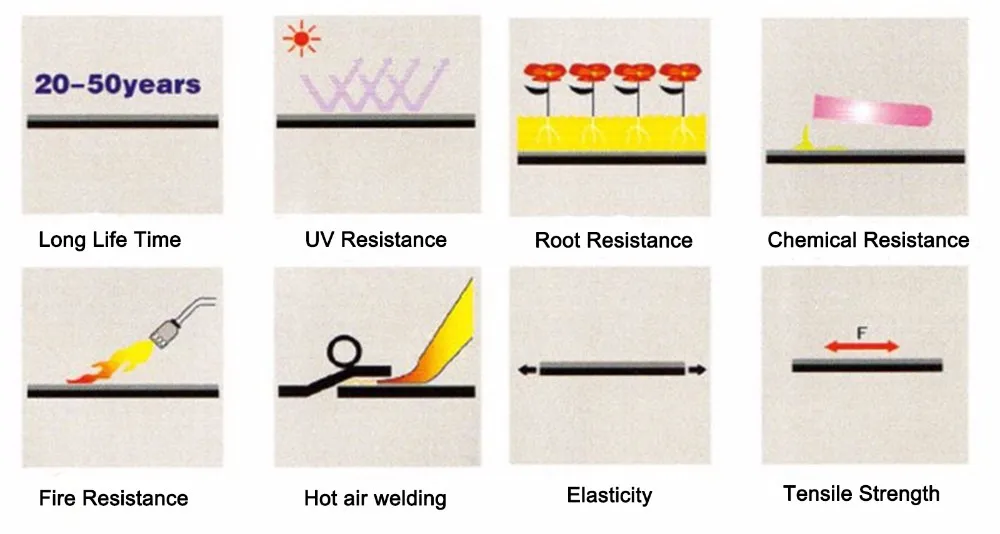

Product Property

1)Strong tensile strength, high elongation, good dimensional stability after heat treatment.
2)Excellent flexibility at low temperature, excellent resistance to the low and high temperature.
3)Excellent resistance to impact and perforation.
4)Excellent resistance to chemical etching.
5)Fireproof : the membrane extinguish immediately after away from the fire source.
6)Easy and fast construction without pollution.
7)Excellent resistance to the aging, long service life.
Service life: more than 20 years as roof waterproof material, more than 50years if used in underground waterproof .
8)Repair project: Repair the damage place only and reduce the repair cost.
8)Various colors are available.

Specification

Product name	PVC waterproofing membrane
Brand	Hongou
Thickness	0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm
Width	1.0m,2.0m, 2.05m, 2.1m
Length	20m or customized
Type	L type H type P type

Technical data

No.	Item		H	L	P	G	GL
1	The thickness of resin on reinforcement (mm) ≧		---		0.4
2	Tensile strength	Max Tension strength (N/cm) ≧	-	120	250	-	120
		Tensile strength (Mpa) ≧	10.0	-	-	10.0	-
		Elongation at Max. tension (%)≧	-	-	15	-	-
		Elongation at break (%) ≧	200	150	-	200	100
3	Dimensional stability after heat treatment (%)≦		2.0	1.0	0.5	0.1	0.1
4	Foldability at low temperature		-25℃ No cracks
5	Watertightness		0.3Mpa, 2H, impermeable
